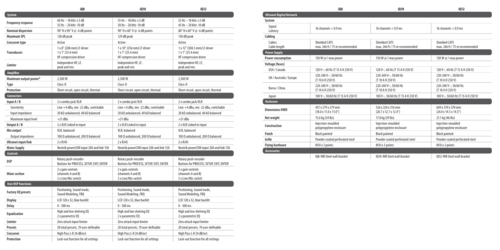

System
60 Hz – 18 kHz ±3 dB55 Hz – 20 kHz -10 dB
90° H x 90° V @ -6 dB points
128 dB peak
Active
1 x 8" (208 mm) LF driver1 x 1" (25.4 mm) HF compression driver
Independent HF, LF, peak and rms
Amplifier
2,500 W
Class-D
Short circuit, open circuit, thermal
Connectors
2 x combo jack/XLR
Line +4 dBu, mic -22 dBu, switchable
20 kO unbalanced, 40 kO balanced
+21 dBu
2 x XLR Linked to input
XLR, balanced
100 O unbalanced, 200 O balanced
2 x RJ45
Neutrik powerCON input 20A and link 15A

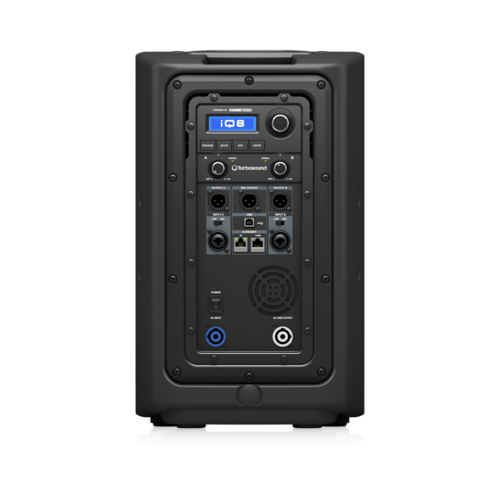

Controls
Rotary push-encoder Buttons for Process, Setup, Exit, Enter
2 x gain controls (channels A and B) 2 x Line/Mic switch
User DSP Functions
Positioning, Sound mode, Sound modeling, FBQ
LCD 128 x 32, blue backlit
0 - 300 ms
High and low shelving EQ2 x parametric EQ
Zero attack input limiter
20 total presets, 19 user-definable
High Pass L-R 24 dB/oct
Lock-out function for all settings
Ultranet Digital Network
Power Supply
150 W @ 1/8 max power
Enclosure
457 x 279 x 279 mm (18.0 x 11.0 x 11.0")
14.7 kg (32 lbs)
Injection-moulded polypropylene enclosure
Black painted
Powder coated perforated steel
M10 x 3 points
Accessories
IQ8-WB Steel wall bracket
2500 Watt 2 Way 8" Powered Loudspeaker with Klark Teknik DSP Technology, Speaker Modelling and ULTRANET Networking
2 way full range loudspeaker for portable PA and installation applications
2,500 Watt power featuring Klark Teknik Class-D technology
Klark Teknik Digital Signal Processing for total system control
Speaker modelling includes accurate models of industry standard speakers
SCC (Spatial Contour Control) compensates frequency response in relation to physical speaker placement
ULTRANET digital audio networking connects to mixers and other sources
8" low frequency driver with low mass voice coil for improved transient response
High temperature 1" compression driver with copperclad aluminium voice coil for extended high frequency reproduction
Fully featured user interface with LCD display for ease of navigation
PC remote control software downloadable at turbosound.com
Lightweight fibre glass reinforced composite enclosure
Rugged powder coated perforated steel mesh grille
Dual angle pole mount for accurate audience coverage
Multiple internal rigging points for installation applications
Mains input and link output on Neutrik powerCON connectors
