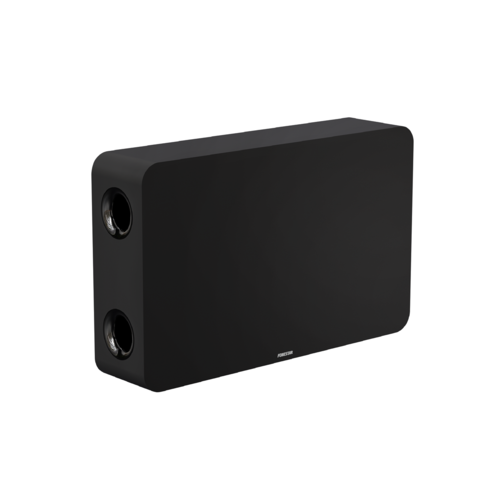

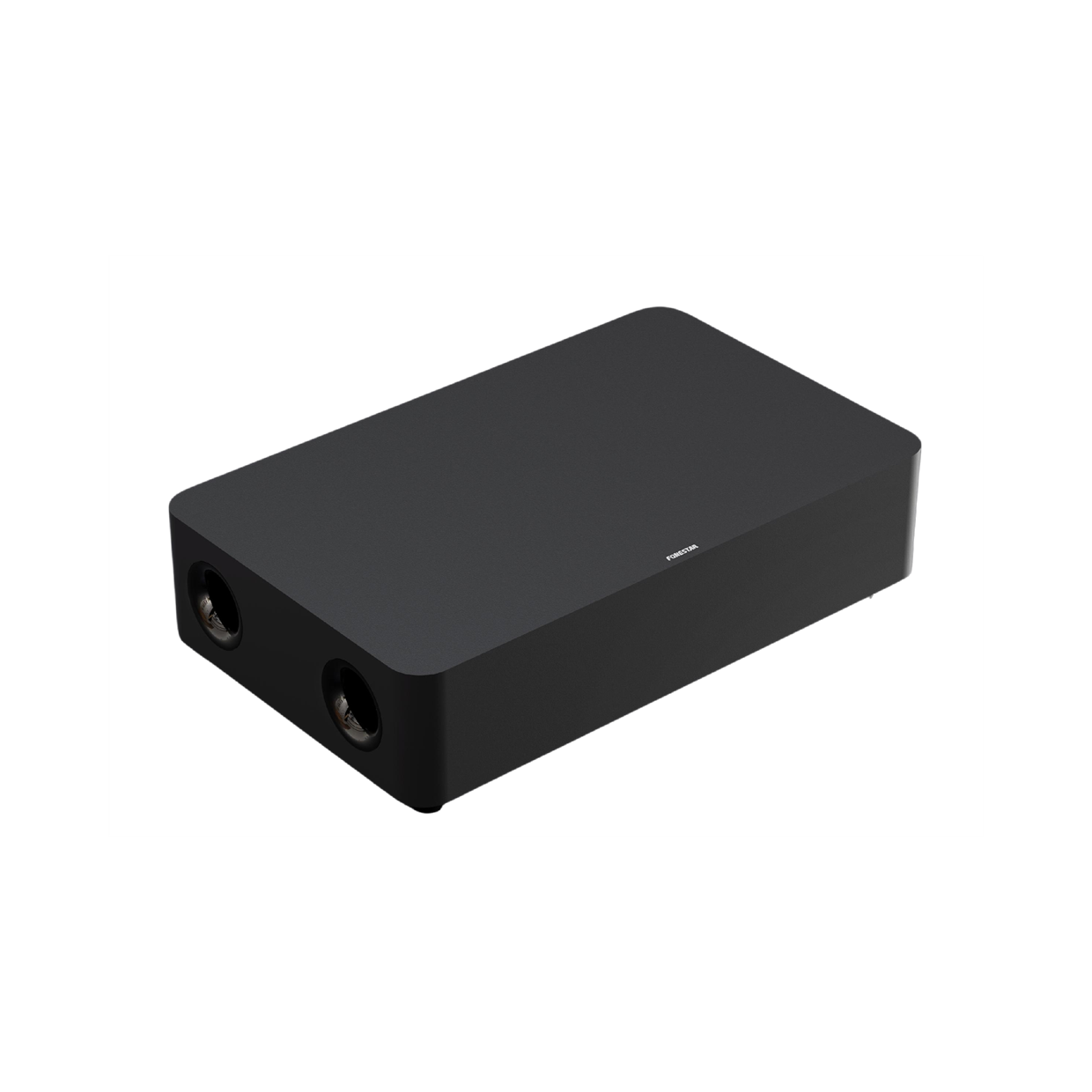

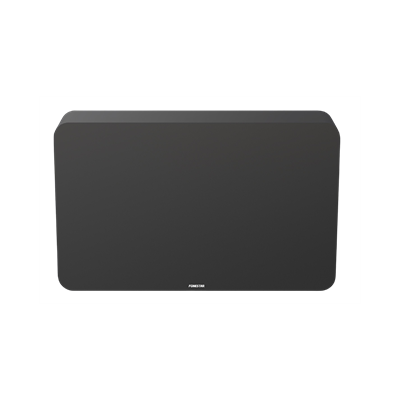

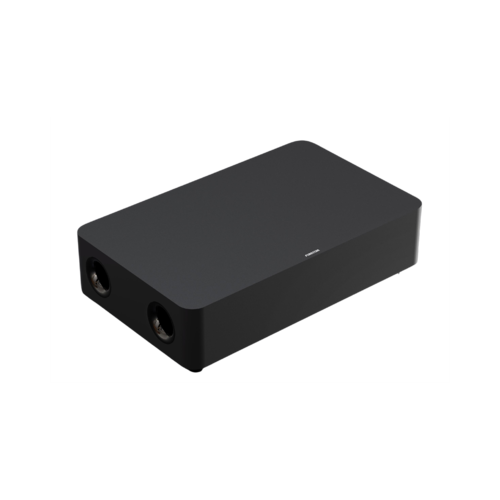

Speakers surface POWERBASS-8TN
Subwoofer loudspeaker with 100 V line transformer and low impedance.
- Reinforcing the bass content of music
- Bass-reflex box
- Line transformer 100/70 V and low impedance
- Wall or floor/shelf installation
100 V line and low impedance subwoofer loudspeaker
Subwoofer with excellent bass response, ideal for sound reinforcement in background music.
Enhances the bass content of music, delivering deep and powerful bass without distortion.

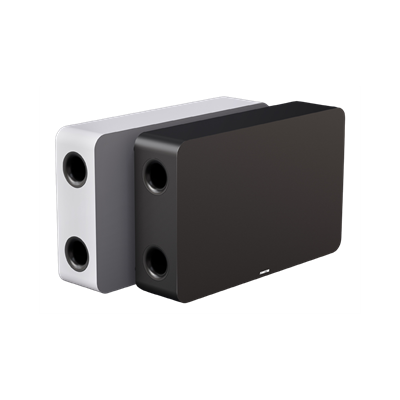

Unique FONESTAR design with stylish shapes and compact size. Available in white or black.
Can be installed on the floor or wall and blends seamlessly into any space.
Fully protected loudspeaker.

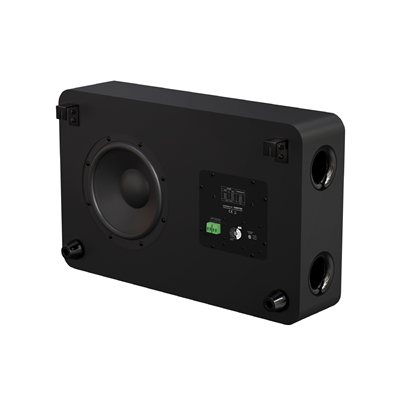

Various options for transformer power selection and low impedance connection to adapt to any installation.
Incorporates a low-pass filter to adjust its frequency response according to the music type and room characteristics.
Bass-reflex reinforcement, utilizing rear speaker radiation to enhance bass.
Perfect for ambient music applications in retail, bars, cafes, etc.
| FEATURES |
DETAILS |
| Type |
Subwoofer speaker for background music applications |
| Bass Response |
Excellent bass response for reinforcement of bass music content |
| Reinforcement System |
Bass-reflex reinforcement system |
| Design |
Unique FONESTAR design |
| Driver Type |
100/70 V line driver and low impedance |
| Installation |
Wall or floor/shelf installation |

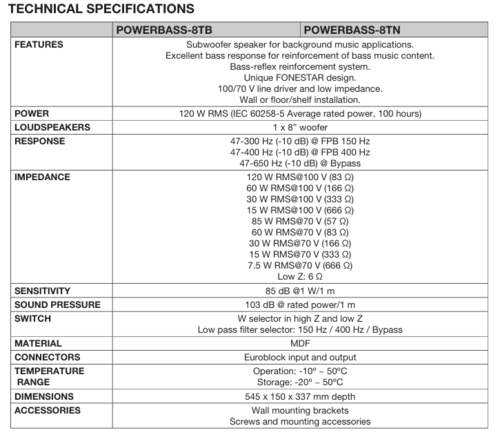

| TECHNICAL SPECIFICATIONS |
DETAILS |
| Power |
120 W RMS (IEC 60258-5 Average rated power, 100 hours) |
| Loudspeakers |
1 x 8″ polypropylene woofer |
| Frequency Response |
47-300 Hz (-10 dB) @ FPB 150 Hz 47-400 Hz (-10 dB) @ FPB 400 Hz 47-650 Hz (-10 dB) @ Bypass |
| Impedance |
120 W RMS @ 100 V (83 Ω) 85 W RMS @ 70 V (57 Ω) 60 W RMS @ 100 V/70 V (166 Ω/83 Ω) 30 W RMS @ 100 V/70 V (333 Ω/166 Ω) 15 W RMS @ 100 V/70 V (666 Ω/333 Ω) 7.5 W RMS @ 70 V (666 Ω) Low Z: 6 Ω |
| Sensitivity |
85 dB @ 1 W/1 m |
| Sound Pressure |
103 dB @ rated power/1 m |
| Switches |
W selector in high Z and low Z Low pass filter selector: 150 Hz / 400 Hz / Bypass |
| Material |
MDF |
| Connectors |
Euroblock input and output |
| Temperature Range |
Operation: -10º ~ 50ºC Storage: -20º ~ 50ºC |
| Colour |
White (RAL 9003) |
| Dimensions (WxHxD) |
545 x 150 x 337 mm |
| Weight |
9.4 kg |
| Accessories |
Wall mounting brackets Screws and mounting accessories |
| Optional Accessory |

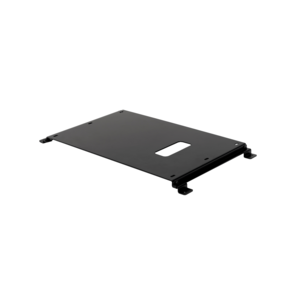

Ceiling mount POWERBASS-CMB |
